Hot Plates

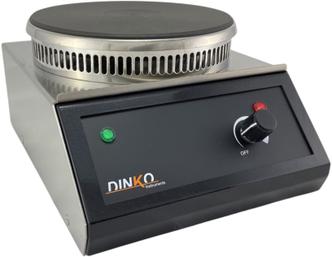

Round Hotplates Model D-35, D-35D, D-39 and D-39D

◊ Stainless steel shield and ventilate housing assure safe internal electronic energy regulator and spills protection
◊ Switch "on–off", heat control know and pilot lamp
◊ Top plates are made steel with embedded heating elements of long-life

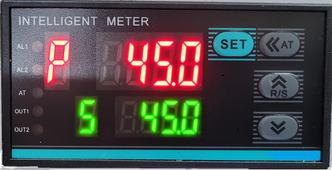

The hotplat Model D-35D and D-39D have digital thermostat of tempertature type PID that come with temperature probe Pt100 with 1 meter cord, rod and clamp that permits to regulate in hot  materials

As accessory a metallic block of 20 diameter cm is given for tubes, adaptable to the plates D-39 and D-39D
(to inddicate diameter tubes).

Also available a round cuvette of 20 cm diameter x 6 cm hight to use hot plates like a sand bath.

Specifications
Power: 230V 50/60Hz

Code

Model

Top plate

diameter

ºC*

Accuracy

Probe

Pt100

Display

Control

Weight

Watts

O. Size cm

1.8425.00

D-35

145 cm

400

± 2

-

-

Thermostat

4Kg

800

16x22x9

1.8425.04

D-35D

145 cm

400

± 0,5

External

Yes

Digital PID

5Kg

800

16x22x9

1.8426.00

D-39

180 cm

400

± 2

-

-

Thermostat

5Kg

1500

24x29x9

1.8426.01

D-39D

180 cm

99,9

± 0,5

External

Yes

Digital PID

6Kg

600

24x29x9

1.8087.06





Metallic block 20 cm. diam.  for tubes (to indicate size tube)

1.8079.01





Solid steel cuvette to enable hot plates as sand baths 20 cm diameter, 6 cm hight

*Surface temperature

Description - Accessories
1.8425.00Hot plate, 145mm. diameter. Temperature control, 400ºC
1.8425.04Hot Plate 145 mm. Digital Temperature control, external probe, 400ºC
1.8426.00Hot plate, 180mm. diameter. Temperature control, 400ºC
1.8426.01Hot plate, 180mm. diameter. Digital Temperature control, external probe, 99.9ºC.
1.8087.06Metallic block 20 mm. diameter, for Hot plate model D-39D(hole tubes to indicate)

Hotplates 2 - 3 places Models D-36 and D-37

◊Rectangular stainless steel housing provided of 2 or 3 round hot-plates 145mm diameter
with embedded heating elements of long-life

◊Each round hot-plate has a separate, heat control know and pilot lamp

◊Equipped with stainless steel heat-shield in order to avoid the excessive heating of the
housing or the internal temperature regulation elements

◊Supplied with threaded rod and support for each position

Specifications

Temperature: max. 400ºC, surface temperature
Accuracy: ±2ºC
Operate: 230V 50/60Hz

CodeModelTopplateWeightWattsO. Size cm
1.8445.00 D-37 3x145Ømm 8Kg 3x1000 59x27x31
1.8444.00 D-36 2x145Ømm 7Kg 2x1000 42x27x31
Description
1.8444.00Hot plate 2-position, top plates 145mm.Ø. Separate temperature control,400ºC
1.8445.00Hot plate 3-position, top plates 145mm. Ø. Separate temperature control, 400ºC
