Turbidimeters

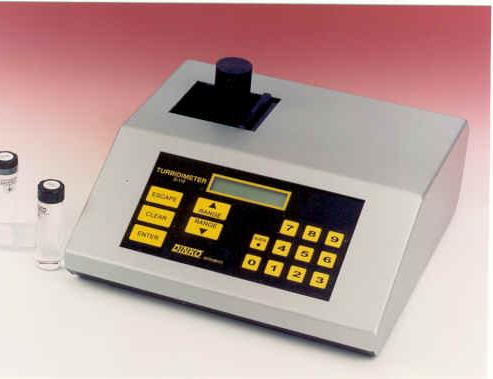

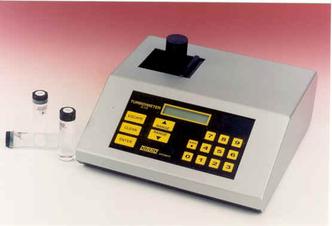

Turbidimeter Model D-110 and D-110IR
The DINKO Turbidimeters are a nephelometric instruments that senses the quantity of light-reflecting particles in water. A beam of light is focused and passed through the sample. Light scattered by particles in water is detected by photo cells located at 90º angle to the incident beam of light and displays the results in NTU (Nephelometric Turbidity Units)
The model D-110 is designed to conform EPA 180.1 requirements related in "EPA Manual of Methods for Chemical Analyses of Water and Wastes" U.S.A. with tungsten wide-band light source 400 to 600nm
With the purpose of palliating the influence of the diffuse light, the colour of the sample and the difference between the angles of scattering light according the size of the particles, a group of sensors covering 360º around the sample tube is used.
The signals obtained are averaged automatically and turbidity readings RATIO are offered in NTU units.
Calibration ranges remains memorised by the instrument, only drop in the standard and push a button. The keyboard avoids the accidental change of the fixed values and the calibrations will be able to spacing
The zero calibration is by user.
The 10 last readings remains under temporary memory
Turbidimeter 110 has a resistance housing in coloured grey and black keyboard, illuminated LCD display, general rear switch, fuse of protection
The apparatus is given calibrated with eight sample cuvettes and instruction manual
The model D-110IR is designed to conform ISO 7027(DIN 27027)requirements with a infrared led 860nm peak wavelength source
The portable version 110P includes rechargeable battery up to 1000 test, charger and aluminium carrying case
Specifications
Range: in 3 steps 0-9.99/10 - 99.9/ 100-999NTU.
Accuracy: ±2% of reading scale 0 and 10 , ±3% on 100 scale
Resolution: 0.01NTU. Repeatability: ±1% of reading
Sample required: at least 5ml. Warm-up system.
Size: 190x210x70mm/Weight: 1.5Kg. Operation 230V-50/60Hz. Power pack: 100...240V 50/60Hz; 5V 15W DC, model P

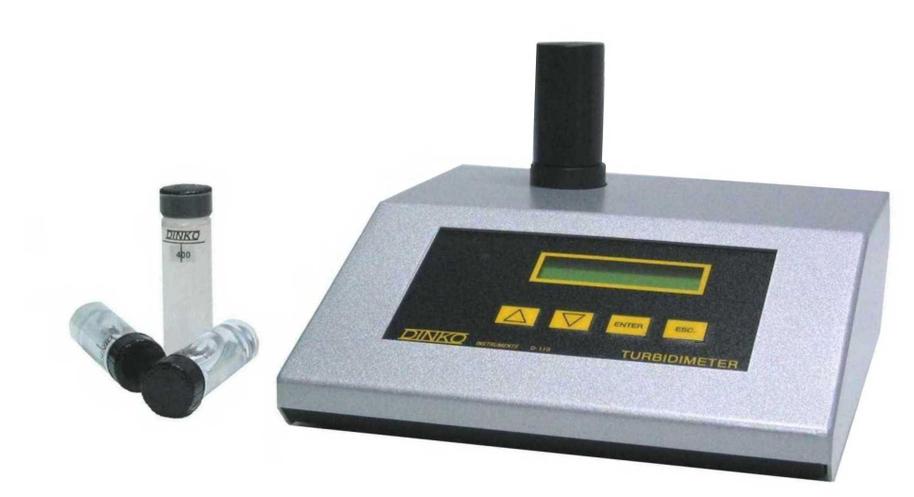

Turbidimeter D-112 and D-112IR
The DINKO Turbidimetersare a nephelometric instruments that senses the quantity of light-reflecting particles in water.
A beam of light is focused and passed through the sample.Light scattered by particles in water is detected by photo cells located at 90º angle to the incident beam of light and displays the results in NTU (Nephelometric Turbidity Units)
The D-112 is designed according 180.1 EPA method related in “EPA Manual of Methods for Chemical Analyses of Water and Wastes” U.S.A. with tungsten wide-band light source.
The D-112IR is according ISO 7027(DIN 27027) requirements with a infrared led 860nm peak wavelength source
PECULIARITIES- To alleviate the influence of diffuse light, the colour of the sample and the difference between the angles of scattering light according to the size of the particles, a group of sensors covering 360º around the sample tube is used.
The signals obtained are averaged automatically and turbidity readings RATIO are offered in NTU units on the right scale without user intervention.
SIGNAL AVERAGING-By means of the AVERAGE key on the front panel the ratio readings made in a given time are automatically averaged.
CALIBRATION-The instrument is supplied calibrated, but it has the function of user recalibration in 4 points. An excessive deviation in subsequent calibrations generates an "error" message in the reader. The membrane keyboard prevents accidental change of the set values and calibrations can be spaced. The zero is set at the factory but it is included in the user re-calibration function.
The parameters involved in the calibration process, readings, time and date are accessible for adjustment and maintenance work.
PRESENTATION- Turbidimeter D-112 has resistance housing in coloured metallic grey and black keyboard, back-light LCD display, general rear switch, and fuse of protection. The apparatus is give with 8 sample cuvettes and instruction manual
Specifications
|
Parameters |
Performances |
Parameters |
Performances |
| Auto-Range |
0-9,999 / 10,00-99,99 /100,0 - 999,9 / 1000-2000 NTU |
Display |
LCD high contrast back-light |
|
Accuracy |
± 2% |
Average readings |
Control Time |
|
Resolution |
0,001 NTU |
Sample required |
Minimal 5ml |
|
Repeatability |
± 1% of reading |
Warm up |
Automatic |
|
Light source |
Tungsten W / LED, infrared |
Memory |
The10 last readings |
|
Input |
Membrane Keyboard |
Size |
250 x 260 x 95mm |
|
Output |
RS232(printer) / RS485(PC) |
Weight |
2 Kg |
|
Readings |
Ratio, instant or average, in NTU |
Power |
230V 50/60Hz |
| 1.9771.00 | D-110 Digital Microprocessor.Three scales 0-10/10-100/100-1000NTU |
|---|---|
| 1.9772.00 | D-110P Digital Microprocessor.Portable.Three scales 0-10/10-100/100-1000NTU |
| 1.9791.00 | D-110IR Digital Microprocessor.Three scales 0-10/10-100/100-1000NTU |
| 1.9792.00 | D-110PIR - Digital Microprocessor.Portable.Three scales 0-10/10-100/100-1000NTU |
| 1.9775.00 | Sample cuvettes, optically selected, Pk. ( 4 ) |
| 1.9790.00 | Antistatic-cleaning solution, 250ml. |
| 1.9773.00 | D-112 Digital.Four scales: 0-10/10-100/100-1000/1000-2000NTU. Autorange, average reading |
|---|---|
| 1.9793.00 | D-112IR Digital.Four scales 0-10/10-100/100-1000/1000-2000 NTU. Autorange, average reading |
| 1.9775.00 | Sample cuvettes, optically selected, Pk. ( 4 ) |
| 1.9790.00 | Antistatic-cleaning solution, 250ml. |
| 1.9776.00 | Primary standard SDVB, EPA 5 NTU, for D-112 and D-110, 60 ml |
|---|---|
| 1.9777.00 | Primary standard SDVB, EPA 40 NTU, for D-112 and D-110, 60 ml |
| 1.9778.00 | Primary standard SDVB, EPA 400 NTU, for D-112 and D-110, 60 ml |
| 1.9784.00 | Primary Standard Formazine 1500 NTU for D-112 EPA/ISO, 60ml |
| 1.9796.00 | Primary standard IR SDVB, ISO 7027 5 NTU for D-112IR and D-110IR |
| 1.9797.00 | Primary standard IR SDVB, ISO 7027 40 NTU for D-112IR and D-110IR |
| 1.9798.00 | Primary standard IR SDVB, ISO 7027 400 NTU for D-112IR and D-110IR |
| 1.9779.00 | Primary standard, Formazine 4000 NTU, 125 ml |

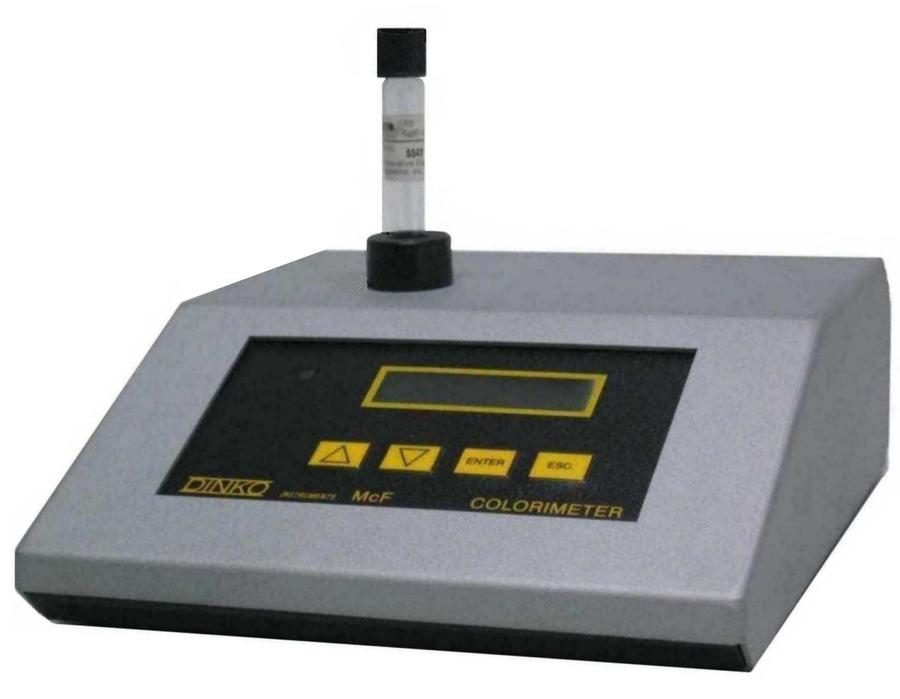

Turbidimeter/Colorimeter McFarland
The Colorimeter McFarland is an user-friendly instrument. Controlled by microprocessor, it contributes great precision, speed and comfort in the determination of the turbidity or density that they go acquiring solutions with growth of bacterial colonies.
The Colorimeter has a range of 0 to 4 McFarland units. They are obtained readings with a resolution of 0.01 McFarland in only 1 seconds and extrapolated readings up to 10 McFarland units.
The Colorimeter is calibrated to correspond with the turbidity of the Barium Sulphate precipitate produced when adding Barium Chloride to the Sulphuric Acid, under McFarland (Journal of American Medical Association)and CLSI (Clinical & Laboratory Standards Institute) conditions.
The front panel includes a keyboard membrane that contributes an excellent watertight and it facilitates the control functions with only four keys.
The function Calibration allows the user re-calibration with standards.
The cell holder admits tubes to 18mm. diameter.
Supplied with ring adapaters for tubes of 13 and 16mm. diameter.
| Specifications | Parameters | Specifications | Parameters |
|---|---|---|---|
| Range | 0-4 McFarland Units | Display | Digital LCD high contrast |
| Extrapolated range | 4-10 McFarland Units | Size/Weight | 220x150x70mm/0,5Kg |
| Resolution | 0,01 McFarland Units | Power | 230V 50/60Hz |
| Factor | 0,1 – 1,99 | Accuracy | ± 0,02 |
| Repetitivity | ± 0,02 |
| 1.9305.00 | McF - Turbidmeter McFarland, 0-10 McF. Resolution 0.01McF |
|---|---|
| 1.9305.11 | Set of Standards McF (0.5-1.0-2.0-3.0-4.0 McFTU) in 16mm Ø tubes |
| 1.9365.00 | Round cuvette optically selected 16mm Ø. Pk. (4pcs) |
| 1.9305.12 | Standard 0.5McFTU in 16mm tube |
| 1.9305.13 | Standard 1.0McFTU in 16mm tube |
| 1.9305.14 | Standard 2.0McFTU in 16mm tube |
| 1.9305.15 | Standard 3.0McFTU in 16mm tube |
| 1.9305.16 | Standard 4.0McFTU in 16mm tube |
| 1.0105.26 | Adapter for 16mm tube |
| 1.0105.25 | Adapter for 15mm tube |
| 1.0105.24 | Adapter for 14mm tube |
| 1.0105.23 | Adapter for 13mm tube |
| 1.0105.22 | Adapter for 12mm tube |
Brochure Turbidimeters D-110 and D-110IR
Manual Turbidimeters D-110 and D-110IR- Only available to registered users
Brochure Turbidimeters D-112 and D-112IR
Manual Turbidimeters D-112 and D-112IR- Only available to registered users
Brochure Turbidimeter/Colorimeter McFarland
Manual Turbidimetetr / Colorimeter McFarland- Only available to registered users
EC Statement- Photometers
